Probe holders

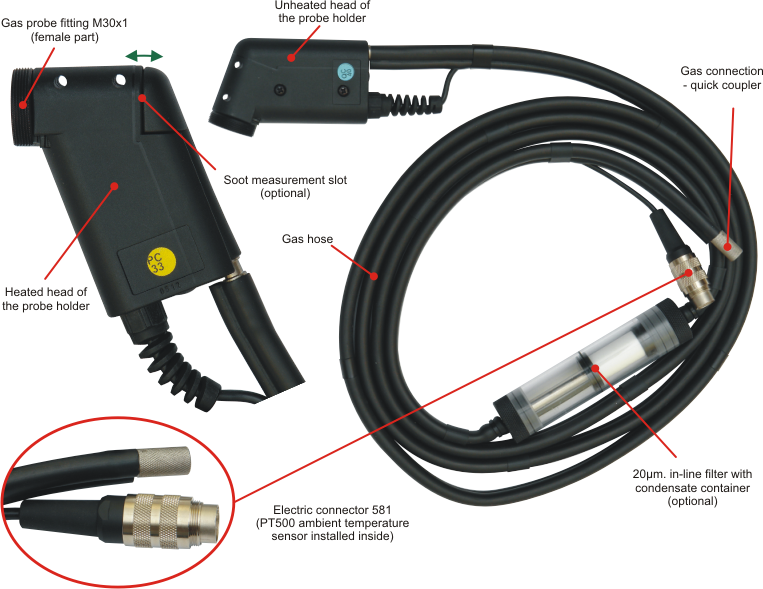

Gas probe holders

Gas probe holder with an exchangeable probe pipe are a complete gas probe.
It has a gas-electric cable that connects the analyser with the probe pipe.
Additionally it can be equipped with a condensate trap with gas filter.
All probe holders have a standard M30x1 female connector to attach the probe pipes.
Probes come in two versions:

  1. Heated, with a slot for soot measurement
  2. Unheated (without possibility to perform soot test)

A. Gas probes holders for GA-12plus

Probe holders for GA-12plus gas analysers have thinner gas tube (ID = 3.25mm) and electric cable is ended with 4-pin connector (Binder 712 type).
Electric connector does not have built-in ambient temperature sensor. Gas tube does not have quick-coupler to connect with analyser.
In case of version with in-line filter it is recommended to use filter inlet with 5µm pores.

Probe holder

B. Gas probes holders for other devices

The probe holders for all other devices (except GA-12plus) have thicker gas tube (ID=5.0mm) and electric cable ended with 7-pin connector (Binder 581 type).
The connector has a PT500 ambient temperature sensor built-in. Gas tube is ended with quick-coupler (female, ID=8.0mm).
In case of version with in-line filter it is recommended to use filter inlet with 20µm pores.

Probe holder

A. Gas probes holders for GA-12plus

Type of probe fitting M30x1 – female part (see drawing #8 below)
Total length of double-hose (electric and gas connection) 2.1m
Gas hose ID | typical nipple OD 3.25mm (see drawing #3 below) | 4mm
Hose ending Plain hose
Built-in heater & slot for soot measurement Optional - see ordering guide
Optional heater: type | maximum power | stabilised temperature PTC resistive heater | 30W | ~45°C
Type of thermocouple compensation cable K-type or S-type – see ordering guide
In-line gas filter with condensate container Yes
Insert for in-line gas filter: material | ID | Length | pore size PE | ID=12mm | OD=18mm | L=32mm | 5µm
Electric plug type 4-pin, male, Binder 712 series or equivalent (see drawing #6)
Ambient temperature sensor installed in the plug No

B. Gas probes holders for other devices

Type of probe fitting M30x1 – female part (see drawing #8 below)
L – Total length of double-hose (electric and gas connection) 3.0m
Gas hose ID | typical nipple OD 5.0mm (see drawing #4 below) | 6mm
Hose ending Female quick-coupler ID=8mm (see drawing #5 below)
Built-in heater & slot for soot measurement Optional – see ordering guide
Optional heater: type | maximum power | stabilised temperature PTC resistive heater | 30W | ~45°C
Type of thermocouple compensation cable K-type or S-type – see ordering guide
In-line gas filter with condensate container Optional – see ordering guide
Insert for the optional in-line gas filter: material | ID | Length | pore size PE | ID=12mm | OD=18mm | L=32mm | 20µm
Electric plug type 7-pin, male, Binder 581 series or equivalent (see drawing #7)
Ambient temperature sensor installed in the plug Yes, PT500 sensor

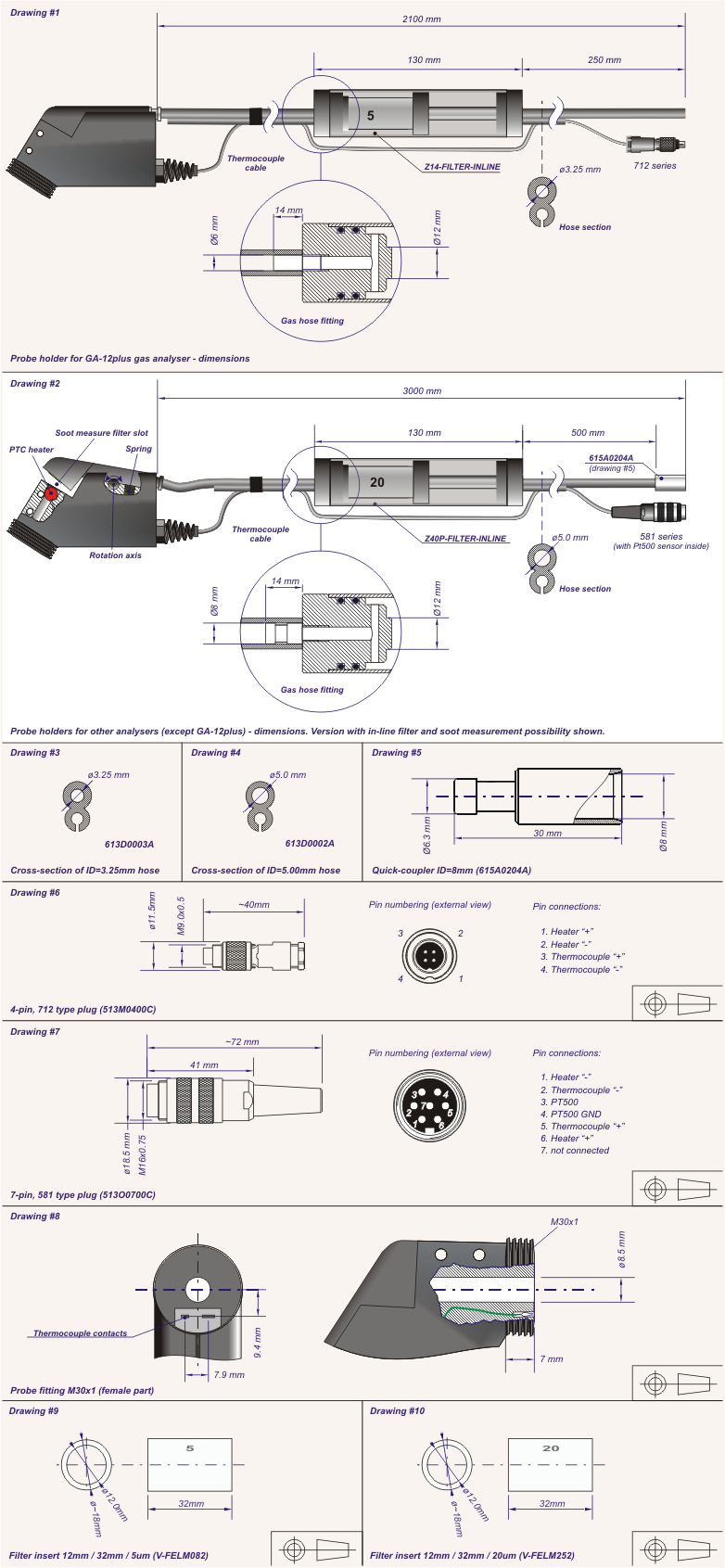

Drawings

2_1

Hereby tool helps to configure, in few simple steps, ready to measure analyser. It allows to select main structural components, like gas dryer, gas sensors, etc. Some elements, like probe pipes are to be selected separately. This mini-configurator, generates a list of madur codes that identifies the selected configuration. Customer may add own comments and requests. Device configuration has to be verified by pressing the Refresh button in the Order Summary section. Order summary can be send to our sale engineers for validation and in order to obtain price offer.


Presenting prices principles

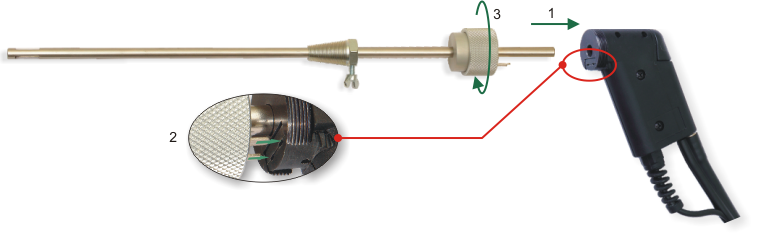

Mounting the probe pipe to the probe holder

  1. Insert the tip of the probe pipe into the holder’s hole and push it until it stops.
  2. Mind the thermocouple’s pins to slide gently in their positions and do not bend!
  3. Tighten up the probe pipe’s sleeve.
Way_of_use_4_1

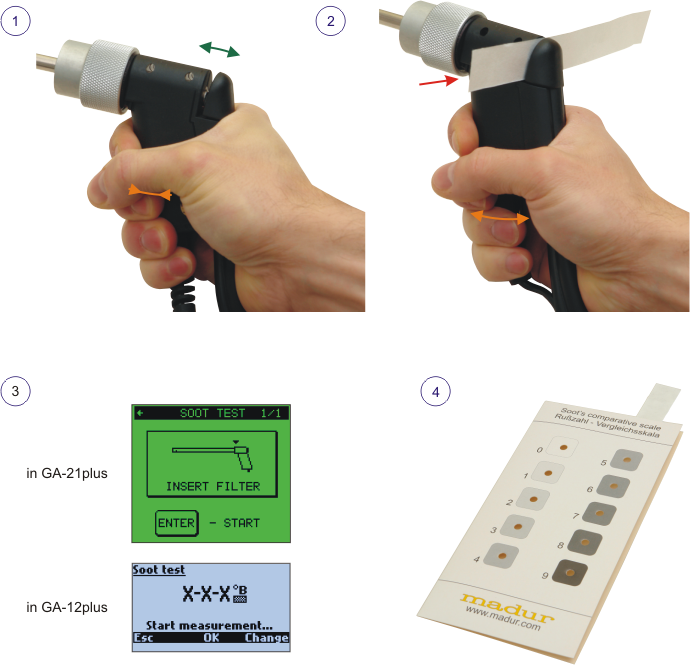

Using the heated probe holder to perform soot test

  1. Squeeze the holder’s grip to open the slot for the filter
  2. Slip in the filter into the slot, and release the grip
  3. Select soot test option in the analyser’s menu to perform the test
  4. After the test is done compare the filter with the soot test scale.
Way_of_use_4_2
