MD3 - universal conditioning unit

MD3 gas dryer was initially designed to be a part of our stationary maMoS analyser.
Though, thanks to the efficiency, small dimensions, and competitive price, MD3 dryer became interesting alternative and even dedicated solution as a standalone gas conditioner.
Its another strong point - universality, makes it available in two different versions: stationary (hung on the wall), and portable for “laboratory” applications.

BROCHURE | DOWNLOADS

Main features

  • condensation dryer based on the Peltier element
  • built-in peristaltic pump for condensate removal
  • large surface gas filter (optionally two of them) that provides thorough cleaning of the gas sample and long maintenance free intervals

MD3 gas dryer, besides it is supplied as a part of maMoS gas analyser, can work as an autonomous device Then it is available in two versions:

A - stationary dryer - MD3 dryer with power supply unit is provided on a common mounting plate. All adjusted to be hung on the wall
B - portable dryer (for laboratory applications) - dryer is adjusted to set on table and is equipped with uncoupled mains adapter

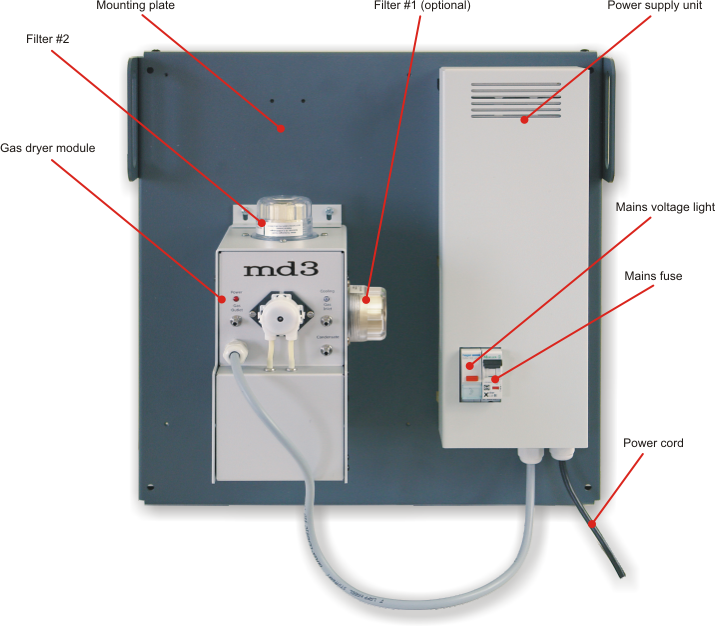

A. MD3 gas dryer as stationary unit

1_1

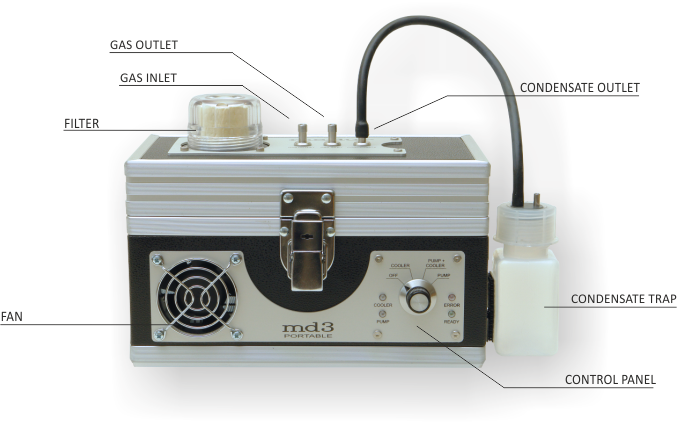

B. MD3 gas dryer as portable (laboratory) unit

1_2

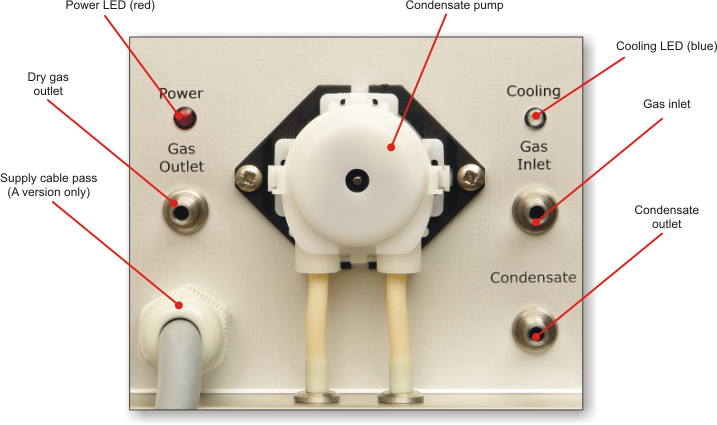

Front panel view

1_3

1. General parameters – MD3 gas dryer

Dimensions (W x H x D) Without filters: 110 x 205 x 160mm
With Filters: 145 x 240 x 160mm
Weight 1790 g (single filter version)
Mounting plate: dimensions (H x W) | material | weight 450 x 439mm | aluminium | 1.55kg
Protection grade IP20
Drying method Water condensation by rapid cooling down
Cooler type Based on Peltier cooling element with fan (12VDC supply)
Cooling temperature Constant, about +1°C, output gas dewpoint about +4°C
Ready to operate after 5 minutes
Operating conditions T: 0°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature 0°C ÷ 60°C
Maximum gas flow for efficient drying
(at inlet gas temp. 100°C and RH 100%)
100l/h
Gas filters: quantity | material 1 (optionally 2) | PA – body, PC – cover, viton – sealing
Filter insert: length | ID | OD | material | pore size 42mm | 26mm | 32mm | glass fibre | 2 μm
Condensate removal With built-in peristaltic pump
Peristaltic pump capacity 38ml/min
Power consumption 30W

2. General parameters – power supply unit – version A

Dimensions (W x H x D) 360 x 130 x 56mm
Weight (depends on equipment) 1.4kg
Casing's material Aluminium
Mounting plate Power supply is mounted on common plate with analyser unit
Operating conditions T: +10°C ÷ +50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature 0°C ÷ +55°C
Input voltage 100 ÷ 240V AC 50/60Hz
Output voltage 24V DC / 6.3A | 150W
Output current 6.3A max
Mains fuse 6A, B type
Cable pass 2 pcs PG-7

3. General parameters – mains adapter – version B

Dimensions (W x H x D) 115 x 55 x 35mm
Weight ~300g
Casing's material PC or PPO
Operating conditions 0°C ÷ +40°C
Storing temperature 0°C ÷ +55°C
Input voltage 100 ÷ 240V AC 50/60Hz
Output voltage +15V DC
Output current 4.33A max.
Output plug type 5.5 x 2.1 x 11mm (positive inner pin)
Output cable length 1.8m
Mains cable socket IEC C8 (T2)

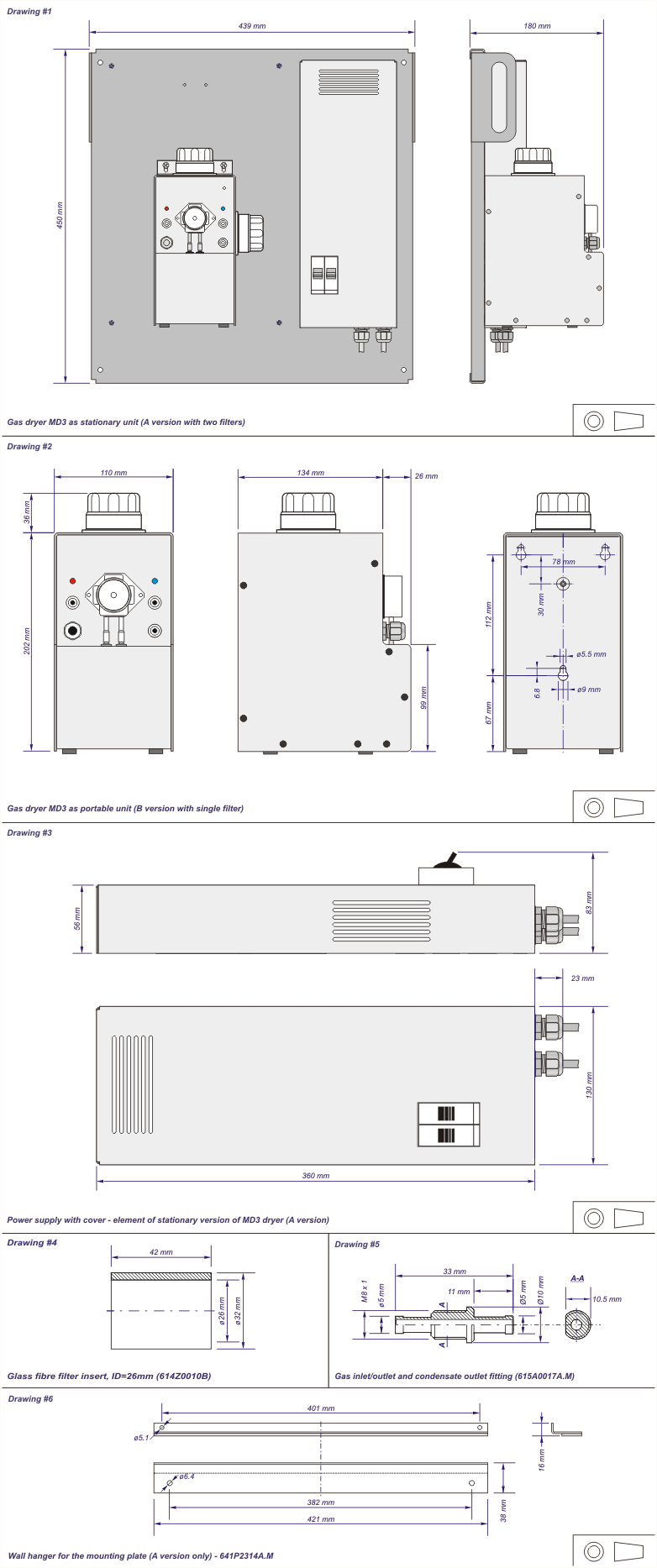

Drawings

2_1
