GA-60

GA-60 portable gas analyzer

The largest of madur’s analysers equipped with electrochemical cells.
It can fit even up to 7 EC cells and up to 3 NDIR sensors.
GA-60 has a large (320x240), graphical LCD with backlighting. Datalogger with SD card for storing results and built-in ribbon printer for standard (non-thermal) paper.

Analyser is offered in two versions:

  1. In basic configuration analyser is not equipped with the gas dryer and works with the probe holder + gas probe pipe. It can be paired with PGD-100 gas dryer with heated hose.
  2. Analyser equipped with a built-in NAFION® type gas dryer and heated hose - configuration especially recommended for measurement of gases highly reactive with water or disturbed by its presence (SO2, HCl, NO2, Cl2).

BROCHURE | DOWNLOADS

Main features

  • Equipped with up to 7 electrochemical cells
  • Equipped with up to 3 NDIR sensors
  • Built-in 58mm ribbon, graphic printer
  • Measurements of gas and ambient temperatures, optionally 8 additional inputs for temperature sensors
  • Built-in rechargeable battery for up to 8 hours of operating (for basic configuration with probe holder + probe pipe)
  • Additional gas filter with condensate trap (installed in the lid)
  • Differential pressure sensor - for measurements of chimney draft and flow velocity (with help of Pitot tube)
  • Soot measurement program
  • Analogue outputs (4-20mA / 0-10V) - optional
  • SD card data-logger for saving results
  • Calculations of many additional parameters
  • Aplicativo para calibración de gases

For analyser in A version:

  • Works with madur standard probe holder and probe pipe
  • Possibility to work with full-size gas dryers (like PGD-100)

For analyser in B version:

  • Built-in NAFION® dryer with peristaltic pump for condensation removal
  • Driver for heated hose
  • Works with heated hose with built-in heated gas filter and with standard M30x1 fitting, that fits all madur gas probes with K-type thermocouples

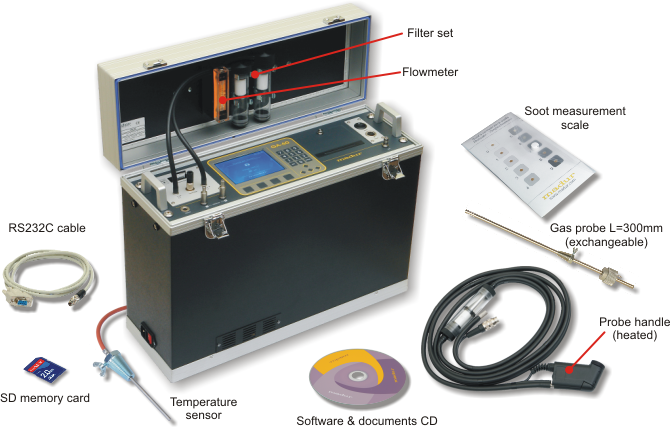

Complete and ready to operate GA-60 analyser (A version - without built-in gas dryer)

GA-60

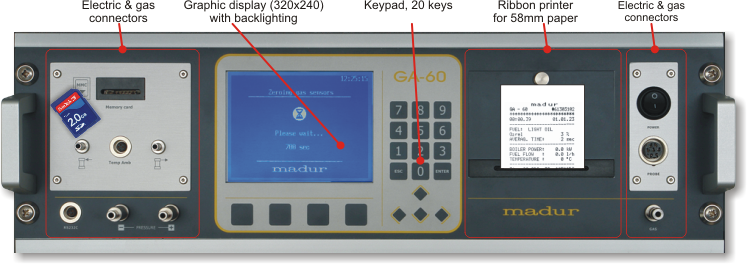

Front panel view (A version)

GA-60

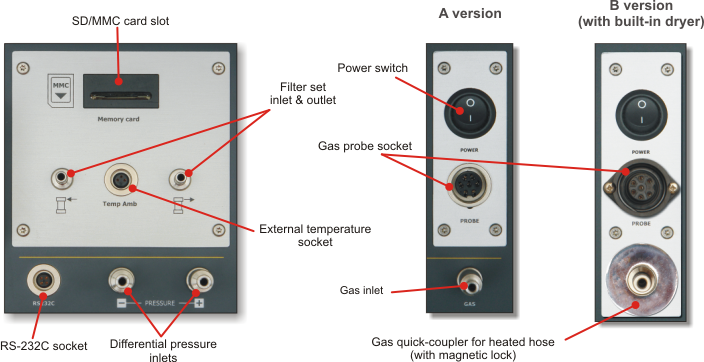

Gas and electric connectors

GA-60

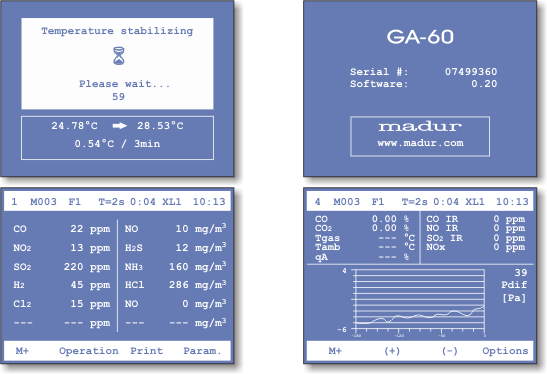

Example screens

GA-60

Example printout

GA-60

1. General parameters

Version A (without built-in dryer)

Dimensions (W x H x D) 500 x 395 x 173mm
Weight (without accessories) 12.2 ÷ 13.2 kg
Casing's material Plywood covered with aluminium
Protection grade IP20
Operating conditions T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ +55°C
Power supply: Input | maximal power consumption 115VAC or 230VAC | 90W (without heated hose)
Battery: type | work time | charging time Lead-acid, rechargeable 3x6V / 4.5Ah | 16h | 12h
Data memory: type | size | number of results SD flash card | max 4GB | practically unlimited
Display Graphical LCD 320 x 240, with variable contrast and back-light
Printer High-speed dot matrix, graphic printer for 2.25” (57.5 ± 0.5mm) normal paper
Gas pump | gas flow Diaphragm, max 2l/min (with automatic flow control) | 90l/h (1.5l/min)
Purging pump for CO sensor Diaphragm, max 1.5l/min
Communication interface with PC computer RS-232C
Gas filtering Built-in final filter with replaceable insert

Version B (with built-in Nafion® dryer)

Weight (without accessories) 13.7 ÷ 14.7 kg
Gas filtering 1. Heated filter included in the heated hose
2. Built-in final filter (behind the gas dryer) with replaceable insert

2. Built-in gas dryer, heated hose driver, heated hose

Concerns only the B version (with built-in Nafion® dryer)

Dryer type Based on Nafion® exchanger
Drying method Water transfer through Nafion® membrane driven by partial vapour pressure differential – first order kinetic reaction
Maximum gas flow for efficient drying 100 l/h
Heated hose temperature +120°C electronically stabilised
Heated hose temperature hysteresis ~ 5°C
Heated hose length 3m (optionally 5m or 10m)
Heated hose power consumption 360W (max)
Heated hose thermocouple wires K-type (S-type optionally)

3. Measurements of gas components

Table below shows the combination of all sensors/ranges. Please mind that the maximum possible gas sensors number in a device is 7 EC and 3 NDIR – see ordering guide.

Component Method Range | Resolution Accuracy Time(T90) Conformity
O2 – Oxygen Electrochemical sensor 20.95% | 0.01% ±0.2% abs. or 5% rel. 45 sec ISO 12039, CTM-030
O2 – Oxygen Electrochemical, partial pressure 20.95% | 0.01% ±0.2% abs. or 5% rel. 45 sec ISO 12039, CTM-030
O2 – Oxygen Electrochemical, partial pressure 25.00% | 0.01% ±0.2% abs. or 5% rel. 45 sec ISO 12039, CTM-030
O2 – Oxygen Electrochemical, partial pressure 100.00% | 0.1% ±0.2% abs. or 5% rel. 45 sec ISO 12039, CTM-030
O2 – Oxygen Paramagnetic sensor 25% | 0.01% ± 0.2% abs. or 5% rel. 45 sec EN 14789, OTM-13
O2 – Oxygen Paramagnetic sensor 100% | 0.1% ± 0.2% abs. or 5% rel. 45 sec EN 14789, OTM-13
CO – Carbon monoxide Electrochemical sensor 4 000ppm | 1ppm ±5ppm abs. or 5% rel. 45 sec ISO 12039, CTM-030
CO – Carbon monoxide Electrochemical sensor 20 000ppm | 1ppm ±5ppm abs. or 5% rel. 45 sec ISO 12039, CTM-030
CO – Carbon monoxide Electrochemical sensor 10% | 0.001% ±0.005% abs. or 5% rel. 45 sec ISO 12039, CTM-030
CO – Carbon monoxide Electrochemical,
with H2 compensation
4 000ppm | 1ppm ±5ppm abs. or 5% rel. 45 sec ISO 12039, CTM-030
CO – Carbon monoxide NDIR 10% | 0.01% ±0.05% abs. or 5% rel. 45 sec EN 15058
CO – Carbon monoxide NDIR 100% | 0.1% ±0.5% abs. or 5% rel. 45 sec EN 15058
CO2 – Carbon dioxide NDIR 5% | 0.01% ±0.05% abs. or 5% rel. 45 sec ISO 12039
CO2 – Carbon dioxide NDIR 25% | 0.01% ±0.05% abs. or 5% rel. 45 sec ISO 12039
CO2 – Carbon dioxide NDIR 100% | 0.1% ±0.5% abs. or 5% rel. 45 sec ISO 12039
CH4 – Methane NDIR 5% | 0.01% ± 0.05% abs. or 5% rel. 45 sec
CH4 – Methane NDIR 25% | 0.01% ± 0.05% abs. or 5% rel. 45 sec
CH4 – Methane NDIR 100% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
NO – Nitric oxide Electrochemical sensor 1 000ppm | 1ppm ±5ppm abs. or 5% rel. 45 sec EN 50379, CTM-022
NO – Nitric oxide Electrochemical sensor 5 000ppm | 1ppm ±5ppm abs. or 5% rel. 45 sec EN 50379, CTM-022
NO2 – Nitrogen dioxide Electrochemical sensor 1 000ppm | 1ppm ±5ppm abs. or 5% rel. 60 sec EN 50379, CTM-022
SO2 – Sulphur dioxide Electrochemical sensor 2 000ppm | 1ppm ±5ppm abs. or 5% rel. 45 sec EN 50379
SO2 – Sulphur dioxide Electrochemical sensor 5 000ppm | 1ppm ±5ppm abs. or 5% rel. 45 sec EN 50379
H2S – Hydrogen sulphide Electrochemical sensor 1 000ppm | 1ppm ±5ppm abs. or 5% rel. 70 sec
H2 – Hydrogen Electrochemical sensor 2 000ppm | 1ppm ±10ppm abs. or 5% rel. 50 sec
H2 – Hydrogen Electrochemical sensor 20 000ppm | 1ppm ±10ppm abs. or 5% rel. 70 sec
H2 – Hydrogen Thermal Conductivity Detector 10% | 0,1% ±0,5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 25% | 0,1% ±0,5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 50% | 0,1% ±0,5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 100% | 0,1% ±0,5% abs. or 5% rel. 45 sec
CL2 - Chlorine Electrochemical sensor 250ppm | 1ppm ±5ppm abs. or 5% rel. 60 sec
HCl - Hydrogen chloride Electrochemical sensor 100ppm | 1ppm ±5ppm abs. or 5% rel. 70 sec
N2O - Nitrous oxide NDIR 2 000ppm | 1ppm ±10ppm abs. or 5% rel. 45 sec ISO 21258
CHF3 – Fluoroform (Refrigerant R23) NDIR 2.5% | 0.01% ± 0.05% abs. or 5% rel. 45 s
SO2 – Sulphur dioxide NDIR 1% | 0.01% ±0.05% abs. or 5% rel. 45 sec
NO2 – Nitrogen dioxide NDIR 1 % | 0.01% ± 0.05% abs. or 5% rel. 45 sec
VOC – Volatile Organic compounds PID Photo Ionization Detector 100ppm | 1ppm ±5ppm abs. or 5% rel. 120 sec Method 21
VOC – Volatile Organic compounds PID Photo Ionization Detector 1000ppm | 1ppm ±5ppm abs. or 5% rel. 120 sec Method 21

4. Other measurements / calculated results

Variable Method Range | resolution Accuracy Time (T90)
Tgas – gas temperature K-type thermocouple -10 ÷ 1000°C | 0.1°C ± 2°C 10 sec
Tgas – gas temperature S-type thermocouple -10 ÷ 1500°C | 0.1°C ± 2°C 10 sec
Tamb – boiler intake air temperature PT500 resistive sensor -10 ÷ 100°C | 0.1°C ± 2°C 10 sec
Differential pressure Silicon piezoresistive pressure sensor -25hPa ÷ +25hPa | 1Pa (0.01hPa) ± 2Pa abs. or 5% rel. 10 sec
Gas flow velocity Indirect, with Pitot tube & pressure sensor 1 ÷ 50m/s | 0.1m/s 0.3m/s abs. or 5% rel. 10 sec
Lambda λ – excess air number Calculated 1 ÷ 10 | 0.01 ± 5% rel. 10 sec
qA – stack loss Calculated 0 ÷ 100% | 0.1% ± 5% rel. 10 sec
Eta η – combustion efficiency Calculated 0 ÷ 120% | 0.1% ± 5% rel. 10 sec

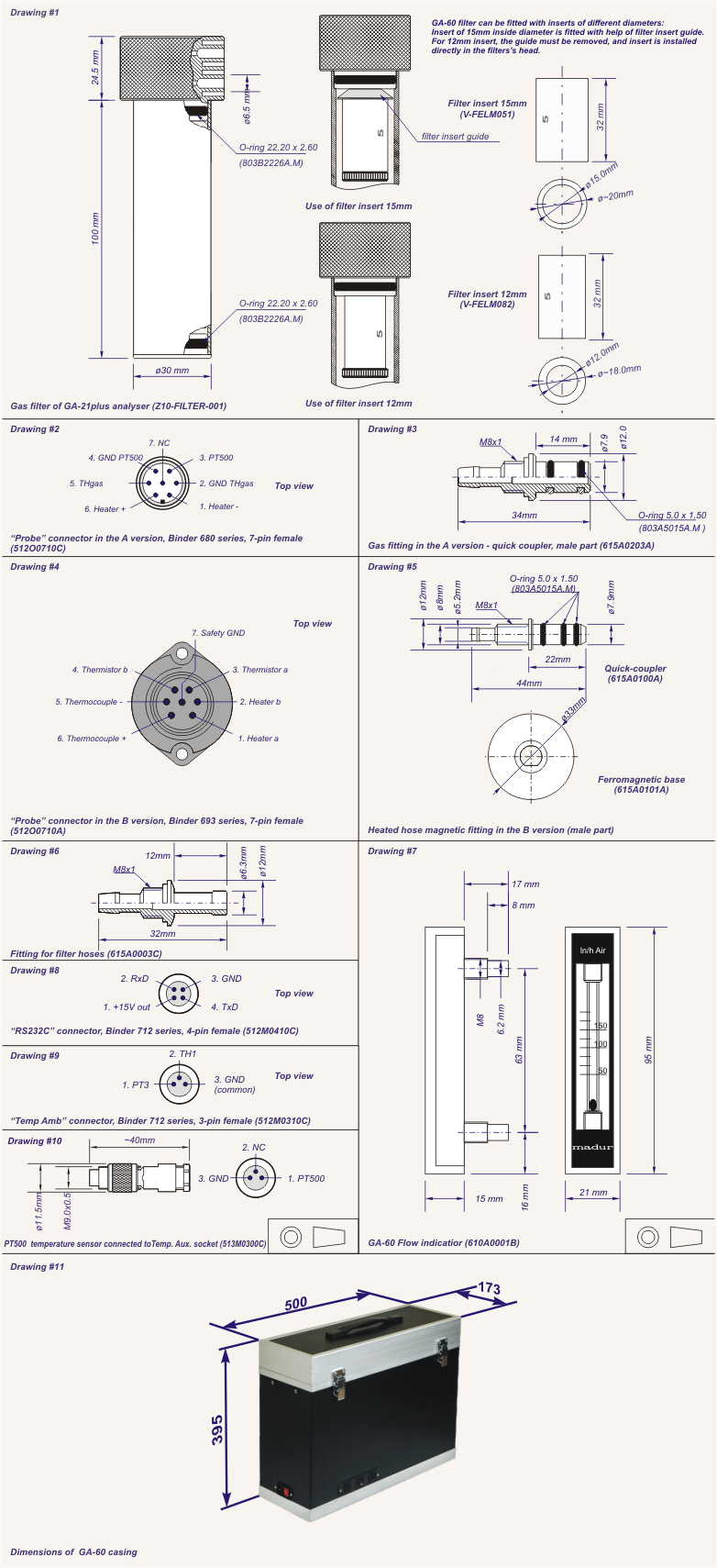

Drawings

Drawings

Hereby tool helps to configure, in few simple steps, ready to measure analyser. It allows to select main structural components, like gas dryer, gas sensors, etc. Some elements, like probe pipes are to be selected separately. This mini-configurator, generates a list of madur codes that identifies the selected configuration. Customer may add own comments and requests. Device configuration has to be verified by pressing the Refresh button in the Order Summary section. Order summary can be send to our sale engineers for validation and in order to obtain price offer.


Presenting prices principles

Analyser’s standard equipment supplied along with the device.

  • 3m mains cable (with selectable plug type)
  • Comparison scale with paper filters for the soot test
  • Gas filter with condensation trap and replaceable filter insert (pore size 5µm)
  • Flow indicator
  • Data-logger with 2GB SD card
  • 2.5m RS-232C communication cable with DB9 female connector
  • Software CD with programs and manuals
  • Quick-couplers for the pressure sensor (2pc.)
  • External ambient temperature sensor (1pc.)

supplemental equipment - ordered separately, but essential to work with the analyser

Probe holder

Probe holder

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
SUITABLE ONLY FOR THE A VERSION OF GA-60 (without built-in dryer).
Together with an exchangeable gas probe pipe is a complete gas probe for extraction of gas samples.
It has single gas tube ended with quick coupler and electric cable ended with a 7-pin connector.
Gas probe pipe is mounted with a M30x1 fastening.
In the electric connector there is a PT500 sensor for measurement of ambient temperature.
Probe holder can be equipped with an in-line filter with a condensation trap (pore size of the filter inlet is 20µm).
Probe holder is available in two versions:

  1. heated (with a slit for a filter for soot measurement test)
  2. unheated (without a possibility to perform soot test)

Ordering code:
see probe holders section

Heated hose

Heated hose

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
SUITABLE ONLY FOR THE B VERSION OF GA-60 (with built-in nafion dryer). Replaces the probe holder.
Heated hose with heated gas filter supplies gas sample to the analyser’s conditioning module.
Hose has M30x1 threaded connection to fix gas probe pipe. The other end has magnetic quick-coupler and electric connector to connect it with analyser.
Standard length of hose is 3m, it is possible to order other lengths of hoses.
Hose is provided with a carrying bag.

Ordering code:
see heated hoses section

Gas probe pipe

Gas probe pipe

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Exchangeable gas probe pipe mounted on the probe holder with M30x1 fastening.
It has thermocouple type K (in some configurations type S) for measurement of gas temperature and a threaded fixing cone. With the probe holder is a complete gas probe.
There are many probe pipes available. They differ in length and working temperature.
For work efficiency it is advised to own different probe pipes to be able to adjust to the measurement place.

Ordering code:
see gas probes section

Optional equipment

Ambient temperature sensor

Ambient temperature sensor

This ambient temperature sensor on a 3m cable is used for measurement of the boiler’s inlet air.
In basic configuration the ambient temperature is measured by sensor installed in the connector of the gas probe handle.

Ordering code:
Z40P-SENS-TEMP

Pitot tube

Pitot tube

Pitot tube is used for indirect measurement of gas flow velocity (measurement with the analayser’s differential pressure sensor).
A few lengths of tubes are available. Pitot tube has 2m gas tubings to connect it with the analyser.

Ordering codes:
Z00-PITOT-5002
Z00-PITOT-8002

RS232C to USB converter

RS232C to USB converter

2.5m cable that allows to connect the analyser (its RS232C port) with USB port in PC computer (especially valuable when PC is not equipped with COM port).

Ordering code:
Z40P-USB-ADAP

Bluetooth communication module

Bluetooth communication module

Module connected to the analyser’s RS232C port, allows to communicate with PC computer over Bluetooth protocol.

Ordering code:
Z40P-BLUE-TOOTH
