GF-4 Scrubber

GF-4 Scrubber is an answer for applications with an excessive amount of pollutants in the process.
Set of combined filters is able to remove substantial part of contaminants.
GF-4 system originally was aimed form syngas applications but madur's customers use it successfully in other fields that require removal of dust, oil mist or tar substances before gas sample is measured.

BROCHURE | DOWNLOADS

Main features

  • remove dust, oil mist and tar substances form the gas sample
  • aimed for e.g. syngas application
  • compatible with all madur’s analysers
  • available in stationary and portable version

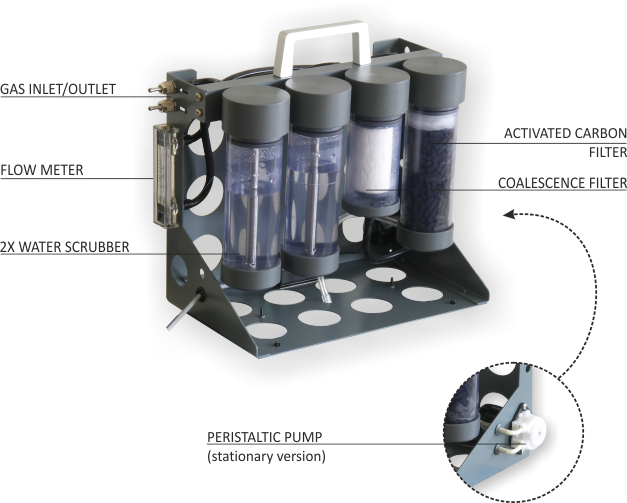

General view of GF-4 Scrubber

1_1

General parameters

Dimensions (H x W x D) 300 mm * 330 mm * 170 mm
Weight 5kg
Storing temperature 0°C ÷ 60°C
Operating conditions T: 10°C ÷ 50°C; RH: 5%÷90% (non condensing)
Condensate removal Peristaltic pump (stationary version)
Filters 2x water scrubber
Coalescence filter
Activated carbon filter

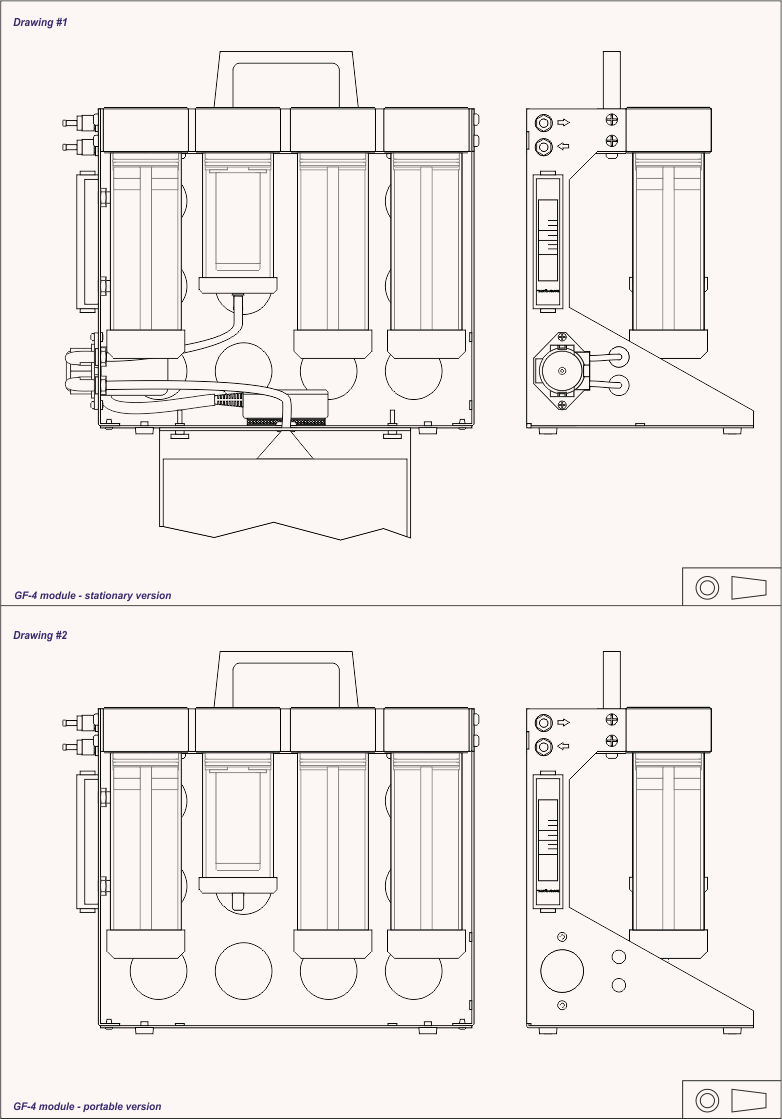

Drawings

2_1
