Stationary gas probe

In contrast to the probe pipe for portable analysers, where the most important are handiness and mobility, stationary probe is a neat and professional solution for extracting gas samples from single, immobile location.
This probe was specially designed to work in anchored position, and is equipped with proper chimney adapter, that holds the probe steadily in the position. It may also be additionally equipped with cleanable filter and its cleaning option, what prolongs the maintenance intervals, or thermocouple for gas temperature measurement.

DOWNLOADS

Main features

Stationary probe is a necessary piece of CEMS system.
Probe must be adjusted to the diameter of the exhaust duct, to the prevailing temperature and dust level.
Probe allows to extract gas sample and to initially clean it. For this purpose it may be equipped with sintered stainless steel filter.
Additionally, it is usually equipped with K-type thermocouple that allows to perform the measurement of gas temperature.
To ease the maintenance of the filter (its cleaning) the probe may also be equipped with the valve (manual or solenoid one) that channels connected compressed air to the probe's filter in order to clean it with a strong blow.
Probe may be connected to the heated hose that leads the sample to the gas dryer.
Pictures below show examples of possible configurations of the stationary gas probe.

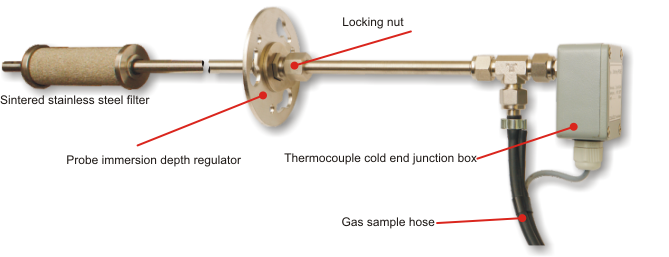

Stationary gas probe: base + sintered inox filter + thermocouple

1_1

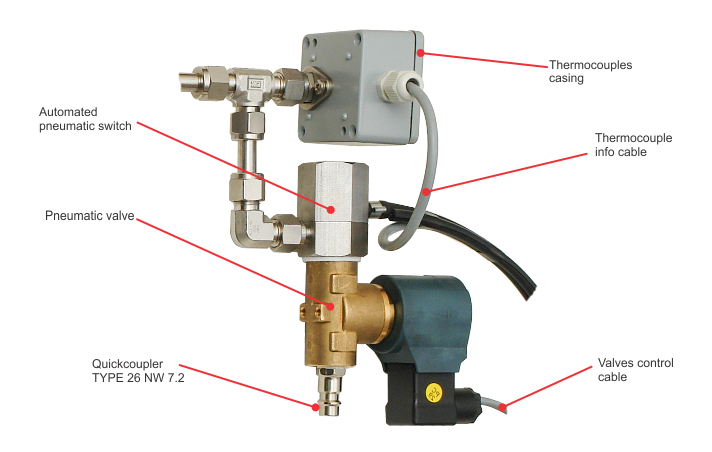

Stationary gas probe: base + thermocouple + automatic blow-back valve

1_3

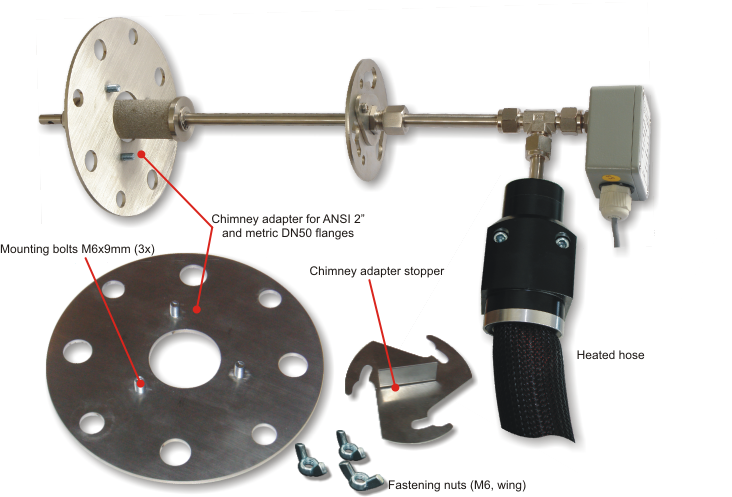

Stationary gas probe with chimney adapter for ANSI 2” and metric PN6 DN65 flanges

1_4

Stationary gas probe with chimney adapter M64x4mm

1_5

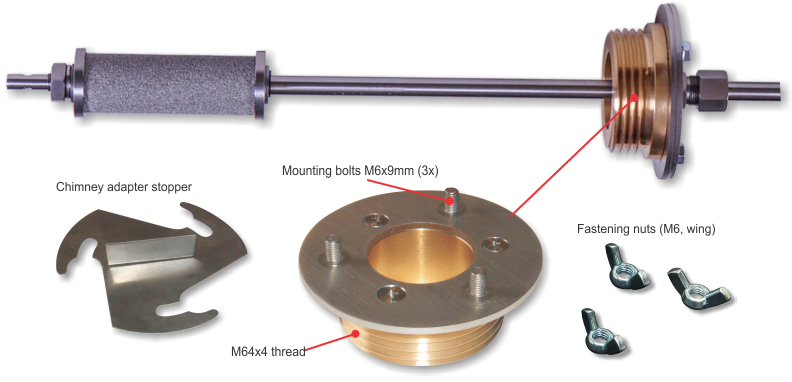

Chimney adapter ANSI 2” vs M64x4 (both with stoppers)

1_6

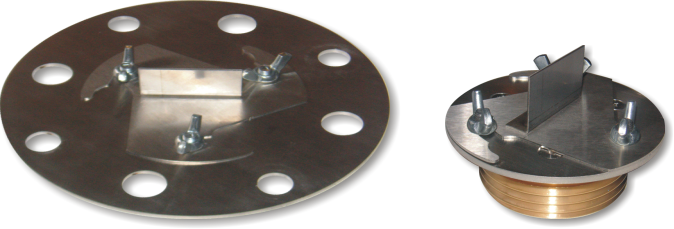

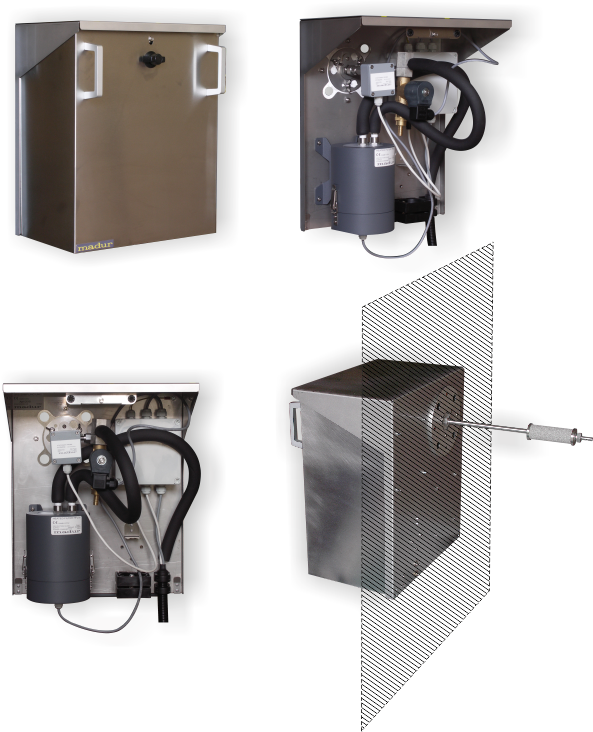

Stationary gas probe with cover

1_7

1. General parameters

Nominal length
(when probe is maximally immersed in the chimney)
300mm, 500mm, 1000mm
(other lengths can be also provided – please ask our sale engineers)
Weight 1kg ÷ 2kg
Probe pipe: material | outside diameter | inside diameter Stainless steel DIN 1.4571 | 10mm | 6mm
Thermocouple type NiCr-Ni (K-type)
Filter: material | OD | ID | length | pore size Siperm R (sintered stainless steel) | 30mm | 26mm | 90mm | 25µm
Cleaning air pressure max. 10bar, recommended 6-8bar
Gas hose: material | OD | ID | length PE | 8mm | 6mm
(probe can also be provided with heated hose)
Hose ending Plain hose
Compressed air connections: material | OD | hose Stainless steel AISI 316 | 9mm | 5/16”
Electric connection: type | length | plug Cu wire | 3m | 7 pin; 581 type
Junction box: dimensions (W x H x D) | material | IP code 58 x 64 x 35mm | Aluminium alloy | IP65
Operating temperature 800°C, 1150°C
(all probes with Siprem R filter can work only up to 650°C)
Storing temperature -20°C ÷ +55°C

2. Chimney adapter for ANSI flange

Dimensions: OD x D 155mm x 3mm
Material Stainless steel DIN 1.4571
Mounting holes for ANSI 2” standard: diameter | quantity 16mm | 4
Mounting holes for PN6 DN65 standard: diameter | quantity 13mm | 4
Load 150lb (68kg)
Mounting bolts: size | quantity M6x9 | 3

3. Chimney adapter – M64x4

Dimensions: OD x D 90mm x 30mm
Material Stainless steel DIN 1.4571, Brass
Mounting thread M64x4
Mounting bolts: size | quantity M6x9 | 3

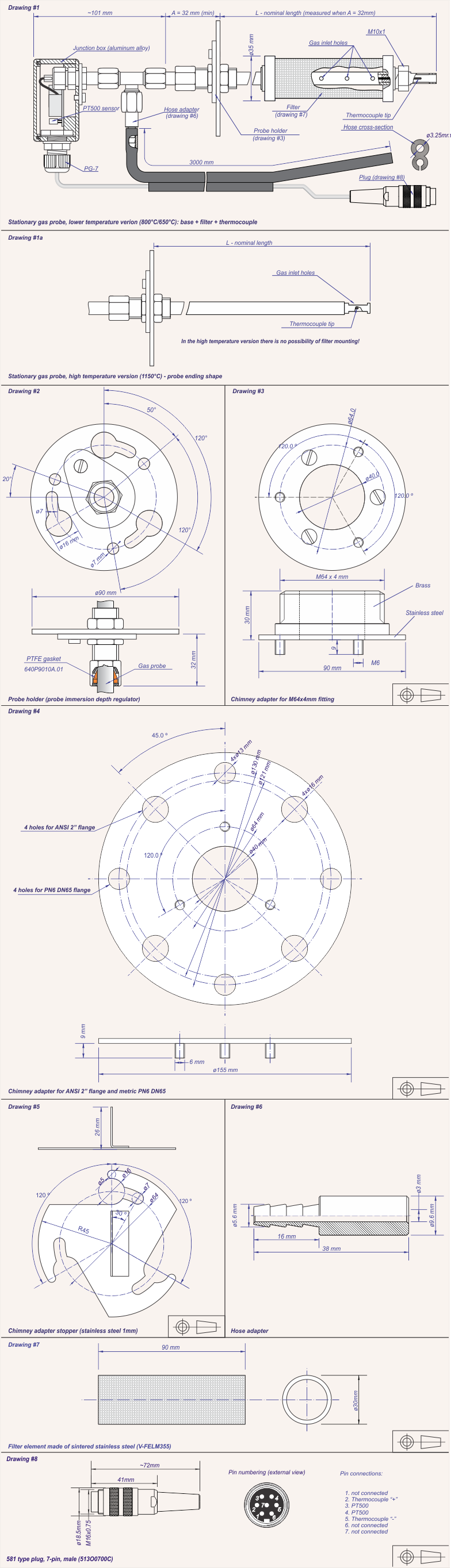

Drawings

2_1
