Photon S

Photon S – CEMS system with NDIR sensors

Photon S is madur’s most recent and most sophisticated apparatus.
It was created based on portable gas analyser - Photon. As its precursor it also uses NDIR gas sensors as the main measurement method - it can have 9 of them supplemented with 4 EC cells.
Along with power supply with control center and the most efficient gas dryer this modular CEMS system is available to mount in 19” open frame rack. It is tailored to a very specific demands of customer, what is possible thanks to lot of available extensions and add-ons.

BROCHURE | DOWNLOADS

Main features

Control module with power supply:

  • contains PC 104 computer with Windows CE operating system, that supervises the work of entire CEMS
  • 6.4” large, VGA (640x480) colourful display with touch-pad for results presentation and data input
  • RS232C and Ethernet ports for communication with PC computer
  • 3 bays for optional modules (available in the front or back of the analyser):
    • analogue outputs / inputs
    • digital outputs / inputs
    • relays output
    • Wi-Fi communication adapter
  • 2x USB port for peripherals (mice, keyboards)
  • calculation of combustion and related parameters
  • large SSD (Solid State Drive) for storage of measurement data
  • fits 19" rack and (space needed - 4U)

Gas conditioner module:

  • equipped with heated hose with heated gas filter
  • large surface, fibre glass filters for removing dust, salt particles and soot
  • several versions of driers available - combination of NAFION® and Peltier exchangers
  • for NO-NDIR measurement - water reservoir and peristaltic pump for automatic control of NO channel’s damp
  • room for O2 paramagnetic sensor
  • fits 19" rack and (space needed - 4U)

Measurement module:

  • thermal insulation and stabilisation of the NDIR sensors' compartment
  • room for 9 NDIR sensors and 4 EC cells
  • NDIR sensors, each with its own thermal stabilisation (to 0.01°C)
  • double gas channel: the first “humid one” for NO-NDIR and the second, dry one for all other sensors
  • measurement of ambient and gas temperatures
  • measurement of atmospheric and differential pressures
  • measurement of chimney draft and flow velocity (with help of Pitot tube)
  • fits 19" rack and (space needed - 4U)

Add-ons, tailored solutions (examples):

  • possibility to prepare overpressure version:
    • with secure, NPT 1/4” gas connectors
    • with option to perform leakage test of the entire device prior measurements
  • possibility to deliver with / without frame rack
  • possibility to exclude the display and PC-104 module from the power supply
  • possibility to adjust / implement special options to the device program

CEMS Photon S is tailored each time according to a specific requirements. Separate implementations may differ considerably in terms of construction. Especially gas connections may be present or not depending on individual configuration. Hereby pictures and drawings present device in an example configuration.

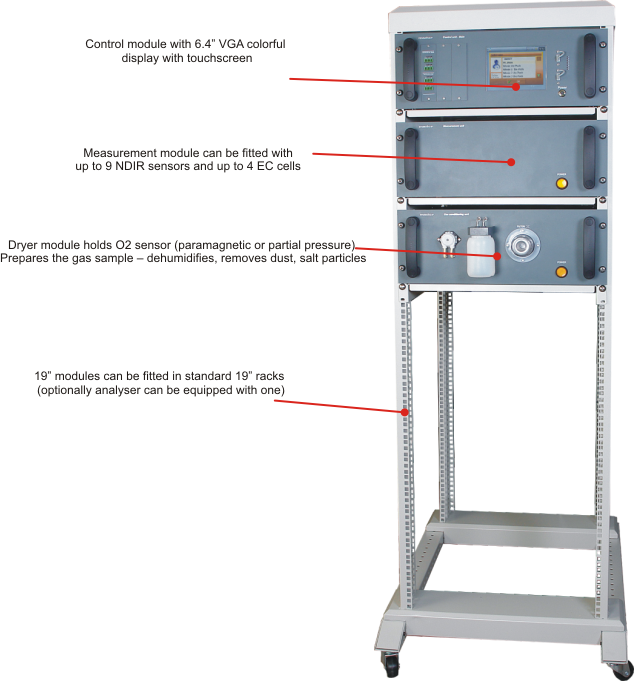

Complete Photon S analyzer built into 19” open frame rack

1_1

Control unit

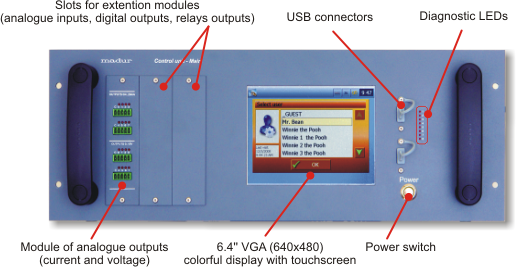

Front view

1_2

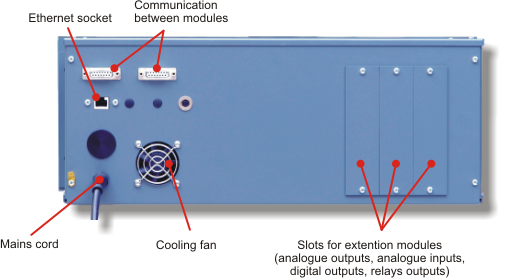

Rear view

1_3

Gas conditioning module

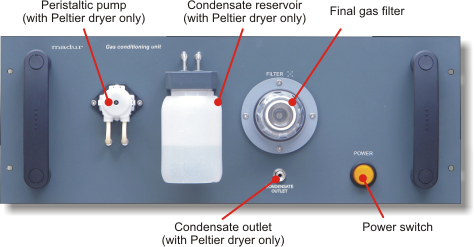

Front view

1_4

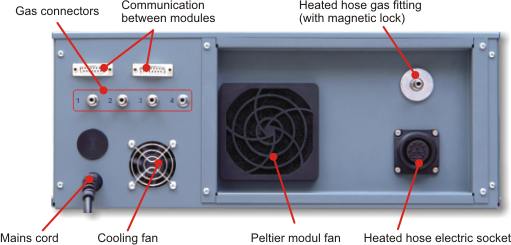

Rear view

1_5

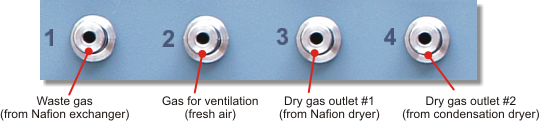

Gas connectors

1_6

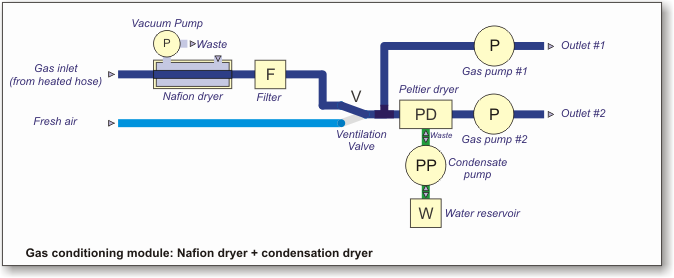

Block diagram

1_7

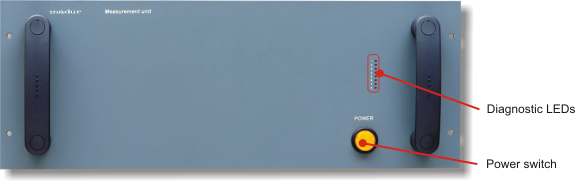

Measurement unit - gas measuring module

Front view

1_8

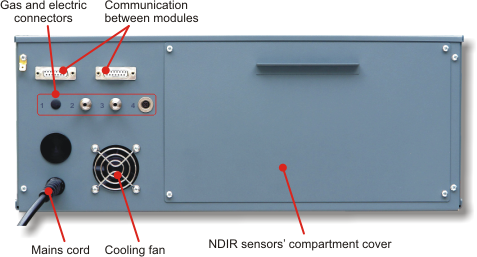

Rear view

1_9

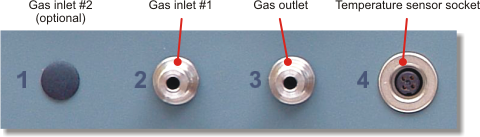

Gas and electric connectors

1_10

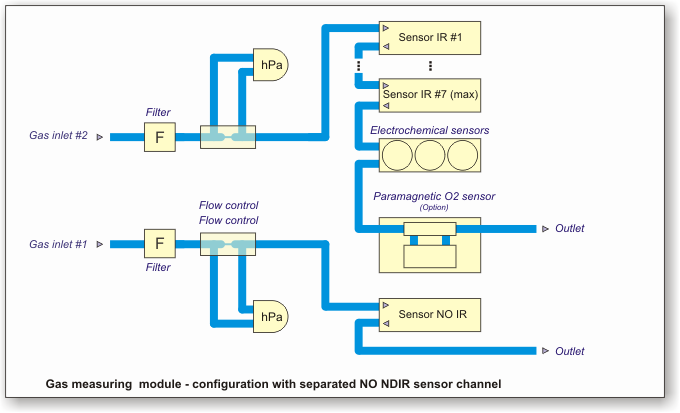

Block diagram

1_11

Example screenshots

1_12

1. Control unit

Dimensions (W x H x D) 486mm x 176mm x 287mm (4U)
Weight 4kg ÷ 5kg
Casing's material Aluminium, powder coated
Protection grade IP20
Operating conditions T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ +55°C
Power supply: input | maximal power consumption 90V ÷ 230V AC | 150W
Operating system Windows CE 5.0
Display 6.4” VGA (640x480)
Data storage: type | capacity Compact Flash card | max. 4GB
Interface for external devices (USB disk, mouse, keyboard) 2x USB
Communication interface with PC computer RS-232C, RJ45 (Ethernet)
Analogue outputs: 8x voltage | 8x current 0V ÷ 10V DC, max. 10mA per output| 0/4mA ÷ 20mA
Digital I/O: 8x inputs | 8x outputs 0V ÷ 24V; Hi _ 3.5V | OC; max. 50mA
Relays outputs: quantity | type | limitations 4 | SPDT | 24VAC; max: 5A
4 | SPDT | 230VAC; max: 5A

2. Gas conditioning unit with condensation & Nafion® dryer

Dimensions (W x H x D) 486mm x 176mm x 538mm (4U)
Weight 9kg ÷ 10kg
Casing's material Aluminium, powder coated
Operating conditions T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Power supply: input | maximal power consumption 90V ÷ 230V AC | 150W (without heated hose)
Cooler type
Outlet 1:  Based on Nafion® exchanger
Outlet 2: Based on Peltier cooling element with fan (12V DC supply)
Drying method
Outlet 1:  Water transfer through Nafion® membrane driven by partial vapour pressure differential – first order kinetic reaction
Outlet 2: Water condensation by rapid cooling down
Cooling temperature
Outlet 1: n/a
Outlet 2: 0°C ÷ 20°C
Ready to operate after 5 minutes
Storing temperature -20°C ÷ 60°C
Maximum gas flow for efficient drying
(at inlet gas temp. 100°C and RH 100%)
100l/h
Gas filter: quantity | material 1 | PA – body, PC – cover, viton – sealing
Filter insert: length | ID | OD | material | pore size 32mm | 12mm or 15mm | 18mm or 20mm | PE | 5µ
Condensate removal With built-in peristaltic pump
Peristaltic pump capacity 38ml/min
Heated hose temperature +180°C electronically stabilised
Heated hose temperature hysteresis ~ 5°C
Heated hose length 3m (optionally 5m or 10m)
Heated hose power supply: Input | maximal power consumption 230V AC | 1000W
Heated hose thermocouple wires K-type (S-type optionally)

3. Gas conditioning unit with Nafion® dryer

Weight 7kg ÷ 8kg
Cooler type Based on Nafion® exchanger
Drying method Water transfer through Nafion® membrane driven by partial vapour pressure differential – first order kinetic reaction
Cooling temperature n/a
Ready to operate after 1 minute
Under pressure in Nafion® collar ~500mbar
Condensate removal n/a
Peristaltic pump capacity n/a
All other data is the same as in point 2

4. Measurements unit

Dimensions (W x H x D) 486mm x 176mm x 538mm (4U)
Weight (depends on installed sensors) 10kg ÷ 16kg
Casing's material Aluminium, powder coated
Operating conditions T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ +55°C
Power supply: input | maximal power consumption 90V ÷ 230V AC | 150W
Warming up time max 90 minutes
Warming up temperature About 18°C above unit's outside air temperature
Maximum outside temperature drift not affecting warming up temperature ±5°C

5. Measurements of gas components

Table below shows the combination of all sensors/ranges. Please mind that the maximum possible gas sensors number in a device is 7 NDIR and 4 EC – see ordering guide.

Component Method Range | resolution Accuracy Time (T90) Conformity
O2 – Oxygen Electrochemical sensor 20.95% | 0.01% ± 0.01% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical,
partial pressure
20.95% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical,
partial pressure
25% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Electrochemical,
partial pressure
100% | 0.1% ± 0.2% abs. or 5% rel. 45 sec ISO 12039,
CTM-030
O2 – Oxygen Paramagnetic sensor 25% | 0.01% ± 0.1% abs. or 3% rel. 45 sec EN 14789, OTM-13
O2 – Oxygen Paramagnetic sensor 100% | 0.1% ± 0.1% abs. or 3% rel. 45 sec EN 14789, OTM-13
CO – Carbon monoxide NDIR 20 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec EN 15058, Method 10
CO – Carbon monoxide NDIR 10% | 0.01% ± 0.03% abs. or 3% rel. 45 sec EN 15058, Method 10
CO – Carbon monoxide NDIR 100% | 0.1% ± 0.3% abs. or 3% rel. 45 sec EN 15058, Method 10
CO2 – Carbon dioxide NDIR 5% | 0.01% ± 0.03% abs. or 3% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 25% | 0.01% ± 0.03% abs. or 3% rel. 45 sec ISO 12039, OTM-13
CO2 – Carbon dioxide NDIR 100% | 0.1% ± 0.3% abs. or 3% rel. 45 sec ISO 12039, OTM-13
CH4 – Methane NDIR 5% | 0.01% ± 0.03% abs. or 3% rel. 45 sec
CH4 – Methane NDIR 25% | 0.01% ± 0.03% abs. or 3% rel. 45 sec
CH4 – Methane NDIR 100% | 0.1% ± 0.3% abs. or 3% rel. 45 sec
NO – Nitric oxide NDIR 1 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 10849, Method 7E
NO – Nitric oxide NDIR 5 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 10849, Method 7E
NO2 – Nitrogen dioxide NDIR 1 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 10849, Method 7E
NO2 – Nitrogen dioxide Electrochemical sensor 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 60 sec CTM-022
SO2 – Sulphur dioxide NDIR 1 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 7935, Method 6C
SO2 – Sulphur dioxide NDIR 5 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec ISO 7935, Method 6C
H2S – Hydrogen sulfide Electrochemical sensor 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 70 sec
H2 – Hydrogen Electrochemical sensor 2 000ppm | 1ppm ± 10ppm abs. or 5% rel. 50 sec
H2 – Hydrogen Electrochemical sensor 20 000ppm | 1ppm ± 10ppm abs. or 5% rel. 70 sec
H2 – Hydrogen Thermal Conductivity Detector 10% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 25% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 50% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
H2 – Hydrogen Thermal Conductivity Detector 100% | 0.1% ± 0.5% abs. or 5% rel. 45 sec
N2O – Nitrous oxide NDIR 2 000ppm | 1ppm ± 3ppm abs. or 3% rel. 45 sec
CHF3 – Fluoroform (Refrigerant R23) NDIR 2.5% | 0.01% ± 0.03% abs. or 3% rel. 45 sec
VOC - Volatile Organic compounds PID - Photo Ionization Detector 100ppm | 1ppm ± 5ppm abs. or 5% rel. 120 sec Method 21
VOC - Volatile Organic compounds PID - Photo Ionization Detector 1 000ppm | 1ppm ± 5ppm abs. or 5% rel. 120 sec Method 21

6. Other measurements / calculated results

Variable Method Range | resolution Accuracy Time (T90)
Tgas – gas temperature K-type thermocouple -10 ÷ 1000°C | 0.1°C ± 2°C 10 sec
Tgas – gas temperature S-type thermocouple -10 ÷ 1500°C | 0.1°C ± 2°C 10 sec
Tamb – boiler intake air temperature PT500 resistive sensor -10 ÷ 100°C | 0.1°C ± 2°C 10 sec
Differential pressure Silicon piezoresistive pressure sensor -25hPa ÷ +25hPa | 1Pa (0.01hPa) ± 2Pa abs. or 5% rel. 10 sec
Gas flow velocity Indirect, with Pitot tube & pressure sensor 1 ÷ 50m/s | 0.1m/s 0.3m/s abs. or 5% rel. 10 sec
Lambda λ – excess air number Calculated 1 ÷ 10 | 0.01 ± 5% rel. 10 sec
qA – stack loss Calculated 0 ÷ 100% | 0.1% ± 5% rel. 10 sec
Eta η – combustion efficiency Calculated 0 ÷ 120% | 0.1% ± 5% rel. 10 sec
IL – incomplete combustion Calculated 0 ÷ 100% | 0.01% ± 5% rel. 10 sec

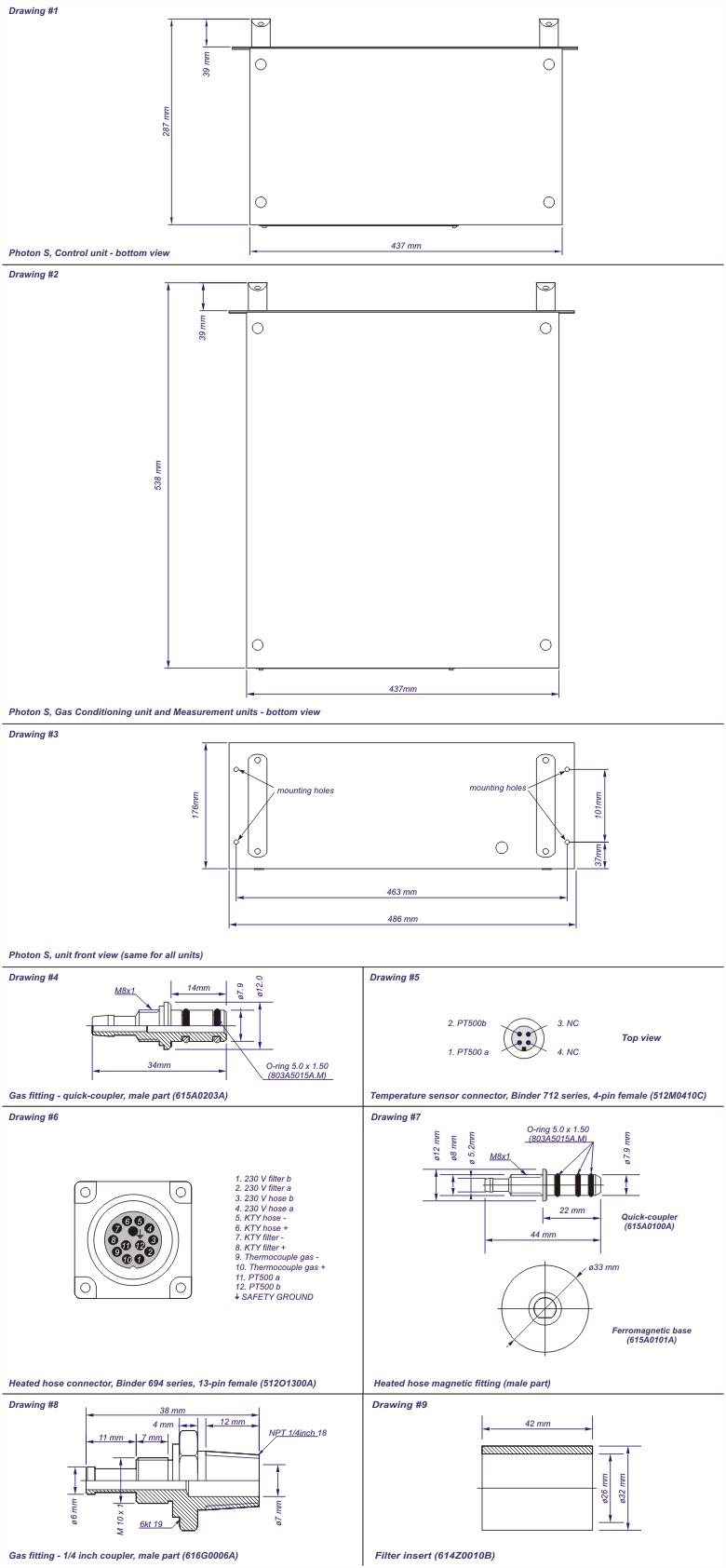

Drawings

2_1

Hereby tool helps to configure, in few simple steps, ready to measure analyser. It allows to select main structural components, like gas dryer, gas sensors, etc. Some elements, like probe pipes are to be selected separately. This mini-configurator, generates a list of madur codes that identifies the selected configuration. Customer may add own comments and requests. Device configuration has to be verified by pressing the Refresh button in the Order Summary section. Order summary can be send to our sale engineers for validation and in order to obtain price offer.


Presenting prices principles

Analyser’s standard equipment supplied along with the device.

Each installation of the Photon S analyser is unique and requires individual approach to customer’s requirements.
Generally, the installation consists of three main modules each in 19’’ rack:

  • Control module with colorful display and touch panel
  • Gas conditioning module
  • Measurement module

Besides, the necessary part of the CEMS system are:

  • 19” frame or cabinet for installation of aforesaid modules
  • Gas probe pipe
  • Heated hose

supplemental equipment - ordered separately, but essential to work with the analyser

Heated hose

4_1

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Heated hose with heated gas filter supplies gas sample to the the analyser’s conditioning module.
Hose has M30x1 threaded connection to fix gas probe pipe.
Standard length of hose is 3m, it is possible to order other lengths of hoses.
It is especially advised when dealing with high humidity and SO2, NO2 and other gases highly reactive with water.

Ordering code:
see heated hoses section

Gas probe pipe

4_2

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Exchangeable gas probe pipe mounted on the probe holder with M30x1 fastening.
It has thermocouple type K (in some configurations type S) for measurement of gas temperature and a threaded fixing cone. With the heated hose is a complete gas probe.
There are many probe pipes available. They differ in length and working temperature.

Ordering code:
see gas probes section

Stationary gas probe

4_3

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Gas probe designed specially for stationary purposes. Probe is available in different lengths and is equipped with suitable holder (different types are available).
Optionally it may also be equipped with:

  • Thermocouple for measurements of gas temperature.
  • Sintered stainless-steel filter (cleanable) - especially recommended when dealing with high concentration of dust and soot.
  • ”Blow-back” cleaning option - valve that allows to switch between measured gas and the compressed air inlet that is used for cleaning the sintered filter.

Ordering code:
see stationary probe section

Optional equipment

Pitot tube

4_4

Pitot tube is used for indirect measurement of gas flow velocity (measurement with the analayser’s differential pressure sensor).
Few length of tubes are available. Pitot tube has 2m gas tubings to connect it with the analyser.
It may be provided with a suitable holder for stationary purposes

Ordering code:
Pitot tube 500mm: Z00-PITOT-5002
Pitot tube 800mm: Z00-PITOT-8002
Holder: Z00-PITOT-HA4

Heated filter

0

Heated filter is installed right after the gas probe. It is best when it is paired with heated hose to prevent vapour from condensing.

Ordering code:
see heated filter section

WiFi communication interfaces

4_6

Optional interface allows to communicate wirelessly with Photon S analyser

Ordering code:
ZMA3-ADAP-WIFI

CET
18:19
msg
msg

Please write below the new quantity.

New value:
X
qqq

X
Title:

General information


madur purchase rules


Service


Dealers


Downloads available only after logging in

TeamViewer remote support software.

Clicking this button will start the download/initialisation process of the program.

More info available in Online support.

Login or sign up for madur online account. Registration will enable you to see products prices.

Talk to our specialists. Click this button and fill in the appearing form. We will contact you at our earliest convenience.

Central European Time
