GA-12plus – hand-held gas analyser

GA-12plus hand-held analyser that can be equipped with up to 4 EC cells.
Larger cousin of GA-12 analyser that share very similar functionality and options.
Thanks to larger housing fits more sensors, is equipped with Li-ion battery by default.
Manufactured according to the principles of EN50379.

BROCHURE | DOWNLOADS

Main features

  • Equipped with 3 or 4 electrochemical cells (typical configuration: O2, CO, NO/NOx, SO2)
  • Works with an external portable printer via wireless communication (IR LED)
  • Built-in rechargeable Li-ion battery for up to 10 hours of operation
  • Probe holder with a standard M30x1 fitting, fits all madur gas probes with the K-type or S-type thermocouples
  • Availbility of soot measurements (with proper probe holder)
  • Built-in pressure sensor for chimney draft measurements and continuous pump flow control
  • Optional second pressure sensor (differential) – for measurements of chimney draft and flow velocity (with help of Pitot tube)
  • Cooperation with digital RH and temperature probe
  • Measurements of gas and ambient temperatures
  • Results presented on LCD display (128x64) with back-lighting
  • Built-in large memory for results savings
  • Calculations of many additional parameters
  • Firmware for gas calibration

Two versions of analyser are available:

  1. Standard version with single pressure sensor
  2. Version with additional differential pressure sensor (that allows to perform measurements of gas flow velocity)

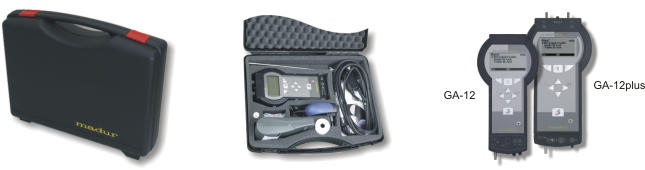

GA-12plus analyser in its carrying case; GA-12 & GA-12plus - size comparison

Full

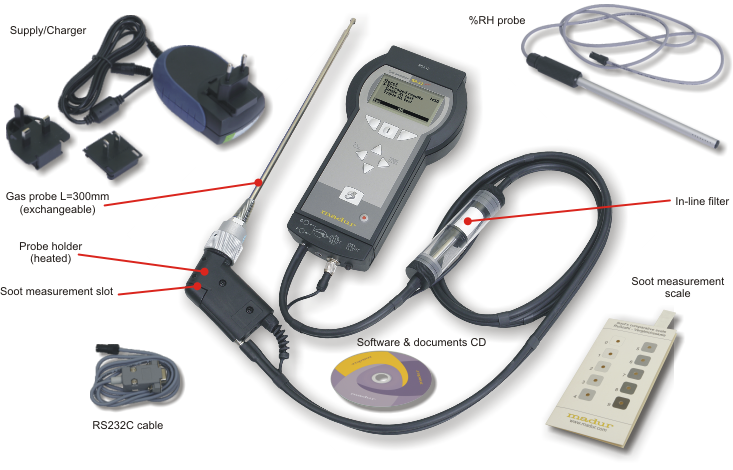

Ready to operate GA-12plus analyser with accessories

Full

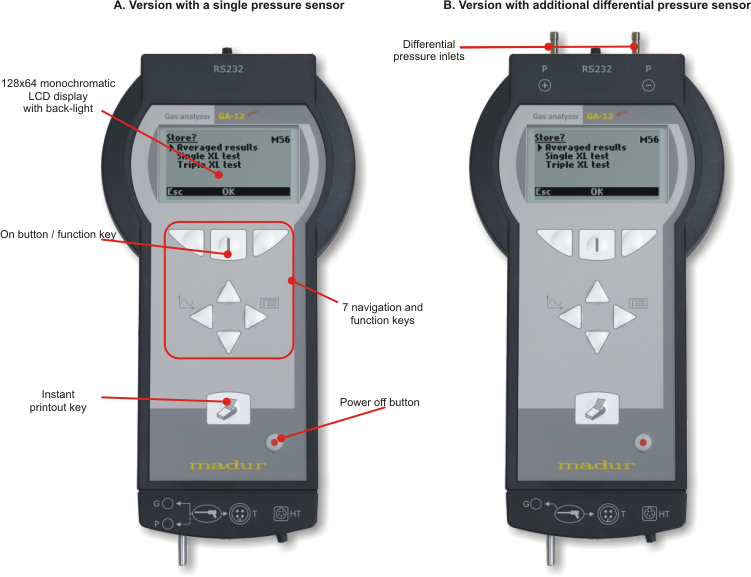

Front panel view

Front

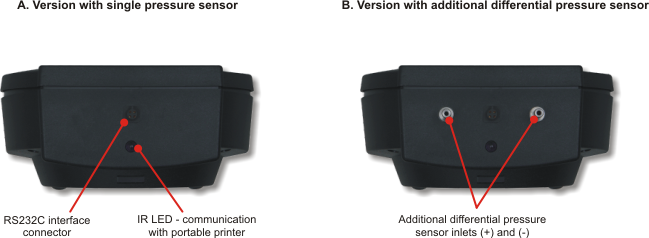

Bottom view

Bottom

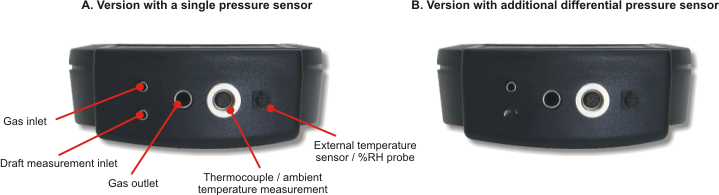

Top view

Top

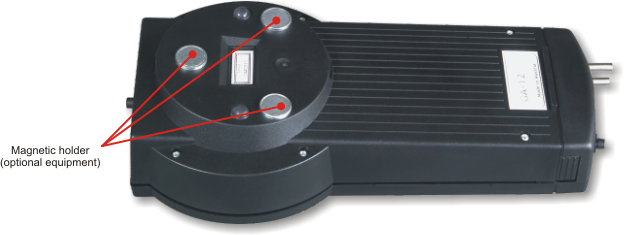

Back side

Back

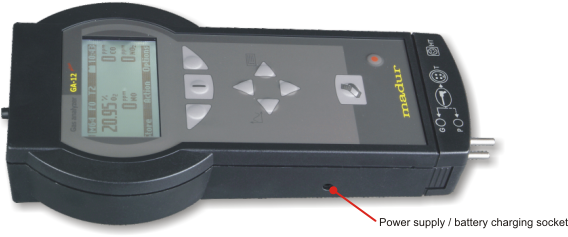

Left side

Left

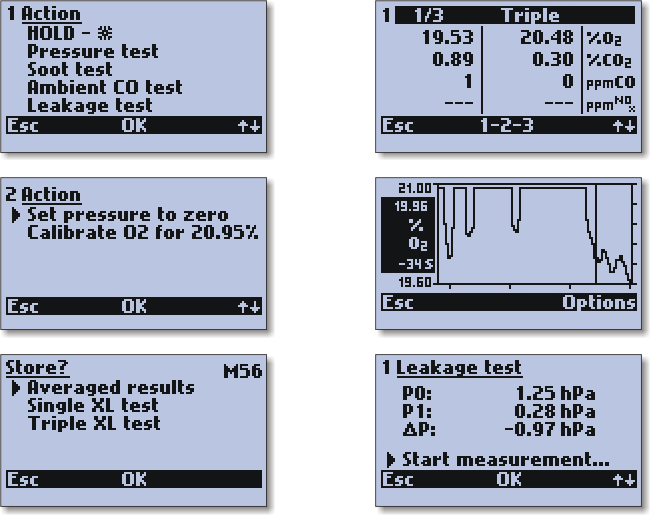

Example screenshots

Screenshots

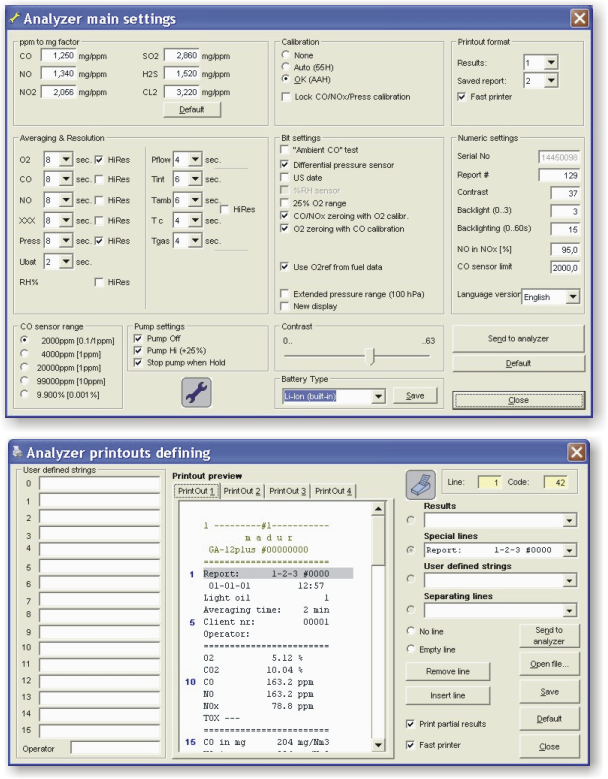

Example PC software screenshots

PC software screenshots

General parameters

Version A (with single pressure sensor)

Dimensions (W x H x D) 243 x 130 x 60mm
257 x 130 x 60mm (with gas connectors)
Weight (just the analyser with 4 sensors, without any accessories) 615g
Housing material ABS case, rubber protective boot (optional)
Protection grade IP20
Operating conditions T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing)
Storing temperature -20°C ÷ +55°C
Power supply Built-in Li-ion rechargeable battery (1600mAh)
Operating time (fully charged battery Up to 16 hours
Number of gas sensors 3 or 4 – see ordering guide
Memory for results For 64 measurement reports
Display Graphical LCD 128x64, with variable contrast and LED backlight
Gas pump Diaphragm, max 0.6 ÷ 0.9l/min.
Printer External thermal IR printer MCP 8850 with charger
Communication interface with PC computer RS-232C
Gas filtering In-line filter included in the gas probe hose

Version B (with additional second pressure sensor)

Dimensions (W x H x D) 243 x 130 x 60mm
271 x 130 x 60mm (with gas connectors)
Weight (just the analyser with 4 sensors, without any accessories) 635g
All other data is the same as for the A version

Measurements of gas components

Table below shows the combination of all sensors/ranges. Please mind that the maximum possible gas sensors number in a device is 3 – see ordering guide

Component Method Range | resolution Accuracy Time (T90) Conformity
O2 – Oxygen Electrochemical sensor 20.95% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 50379, CTM-030
O2 – Oxygen Electrochemical sensor 25.00% | 0.01% ± 0.2% abs. or 5% rel. 45 sec ISO 50379, CTM-030
CO – Carbon monoxide Electrochemical sensor 2 000ppm | 0.1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 50379, CTM-030
CO – Carbon monoxide Electrochemical sensor 4 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 50379, CTM-030
CO – Carbon monoxide Electrochemical sensor 20 000ppm | 1ppm ± 10ppm abs. or 5% rel. 45 sec ISO 50379, CTM-030
CO – Carbon monoxide Electrochemical sensor 10% | 0.001% ± 0.005% abs. or 5% rel. 45 sec ISO 50379, CTM-030
CO – Carbon monoxide Electrochemical,
with H2 compensation
4 000ppm | 1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 50379, CTM-030
NO – Nitric oxide Electrochemical sensor 2 000ppm | 0.1ppm ± 5ppm abs. or 5% rel. 70 sec ISO 50379, CTM-030
NO2 – Nitrogen dioxide Electrochemical sensor 1 000ppm | 0.1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 50379, CTM-030
SO2 – Sulphur dioxide Electrochemical sensor 2 000ppm | 0.1ppm ± 5ppm abs. or 5% rel. 45 sec ISO 50379
H2S – Hydrogen sulfide Electrochemical sensor 2 000ppm | 0.1ppm ± 5ppm abs. or 5% rel. 45 sec

Other measurements / calculated results

Variable Method Range | resolution Accuracy Time (T90)
Tgas – gas temperature K-type or S-type thermocouple -10 ÷ 1000°C | 0.1°C ± 2°C 10 sec
Tamb – boiler intake air temperature PT500 resistive sensor -10 ÷ 100°C | 0.1°C ± 2°C 10 sec
Differential pressure silicon piezoresistive pressure sensor -25hPa ÷ +25hPa | 1Pa (0.01hPa) ± 2Pa abs. or 5% rel. 10 sec
Gas flow velocity (optional) Indirect, with Pitot tube & second pressure sensor 1 ÷ 50m/s | 0.1m/s 0.3m/s abs. or 5% rel. 10 sec
RH – relative humidity SHT11 capacitive polymer sensor (special probe needed) 5 ÷ 95% | 1% ± 5% abs. 30 sec
Lambda λ – excess air number calculated 1 ÷ 10 | 0.01 ± 5% rel. 10 sec
qA – stack loss calculated 0 ÷ 100% | 0.1% ± 5% rel. 10 sec
Eta η – combustion efficiency calculated 0 ÷ 120% | 0.1% ± 5% rel. 10 sec

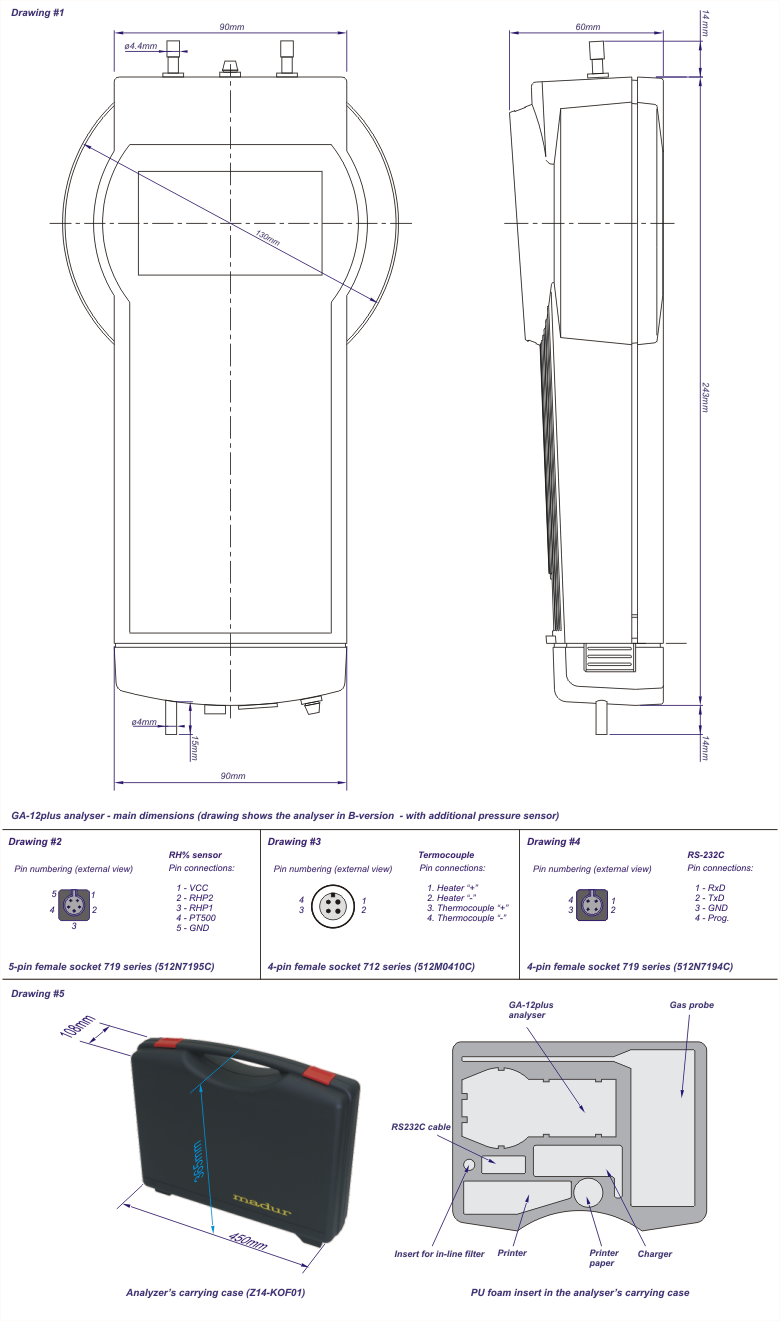

Drawings

Drawings

Hereby tool helps to configure, in few simple steps, ready to measure analyser. It allows to select main structural components, like gas dryer, gas sensors, etc. Some elements, like probe pipes are to be selected separately. This mini-configurator, generates a list of madur codes that identifies the selected configuration. Customer may add own comments and requests. Device configuration has to be verified by pressing the Refresh button in the Order Summary section. Order summary can be send to our sale engineers for validation and in order to obtain price offer.


Presenting prices principles

Analyser’s standard equipment supplied along with the device.

  • Carrying case for analyser and accessories
  • Power supply (charger) for the built-in Li-ion battery with selected type of mains plug
  • Comparison scale with paper filters for the soot test
  • 2.5m RS-232C communication cable with DB9 female connector
  • Software CD with PC software and manuals

supplemental equipment - ordered separately, but essential to work with the analyser

Probe holder

Probe holder

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Together with an exchangeable gas probe pipe is a complete gas probe for extraction of gas sample.
It has single gas tube ended with quick coupler and electric cable ended with a 4-pin connector.
Gas probe pipe is mounted with a M30x1 fitting.
Probe holder is equipped with an in-line filter with a condensation trap (recommended pore size of the filter inlet is 5µm).
Probe holder is available in two versions:

  1. heated (with a slit for a filter for soot measurement test)
  2. unheated (without a possibility to perform soot test)

Ordering codes can be found here

Gas probe pipe

Gas probe pipe

THIS ELEMENT IS ORDERED SEPARATELY, YET IT IS ESSENTIAL TO WORK WITH ANALYSER!
Exchangeable gas probe pipe mounted on the probe holder with M30x1 fastening.
It has thermocouple type K (in some configurations type S) for measurement of gas temperature and a threaded fixing cone. With the probe holder is a complete gas probe.
There are many probe pipes available. They differ in length and working temperature.
For work efficiency it is advised to own different probe pipes to be able to adjust to the measurement place.

Ordering codes can be found here

Optional equipment

Portable printer and printer paper

Portable printer

Portable printer (battery operated), communicates with the analyser via wireless HP-IR interface. Allows to print measurement results instantly on the 58mm thermal paper.
The printer is delivered together with 4 Ni-MH rechargeable batteries and a single roll of paper but WITHOUT mains adapter (which is necessary for battery charging). The mains adapter has to be ordered separately.

Ordering codes:
Z12-PRINTER – printer
V-THP5701 – 58mm thermal paper roll

RH and ambient temperature probe

4_4

Probe for RH and ambient temperature measurements.
Not-suitable for inside stack measurements (working temperature up to 120°C).

Ordering code:
Z14-SON-HUM

Ambient temperature sensor

Temperature sensor

This ambient temperature sensor on a 3m cable is used for measurement of the boiler’s inlet air.

Ordering code:
Z12-SENS-TEMP

Anchor cone for PT-500 ambient temperature sensor

Anchor cone for PT-500 ambient temperature sensor

This cone allows fitting the temperature sensor into holes with different diameter.

Ordering code:
Z14-CONE-PT500

Magnetic holder for PT500 sensor

Anchor cone for PT-500 ambient temperature sensor

This magnetic holder allows to safely hang the sensor on a metal surface.

Ordering code:
Z14-MAGN-PT500

Pitot tube

4_6

Pitot tube is used for indirect measurement of gas flow velocity (measurement with the analayser’s differential pressure sensor).
A few lengths of tubes are available. Pitot tube has 2m gas tubings to connect it with the analyser.

Ordering codes:
Z00-PITOT-5002,
Z00-PITOT-8002

RS232C to USB converter

RS232C to USB converter

2.5m cable that allows to connect the analyser (its RS232C port) with USB port in PC computer (especially valuable when PC is not equipped with COM port).

Ordering code:
Z12-USB-ADAP

Bluetooth communication module

Bluetooth

Module connected to the analyser’s RS232C port, allows to communicate with PC computer over Bluetooth protocol.

Ordering code:
Z12-BLUE-TOOTH

Leatherette casing

Leatherette casing

Soft casing (just for the analyser) made from leatherette, protects the anayser during transport.

Ordering code:
M14-ETUI1

Rubber protector

Rubber protector

Special rubber protector for the analyser’s casing. Protects the analyser against hits and blows.
Shoulder strap ease carrying the analyser.

Ordering code:
Z14-RUBBER-001

Pressure kit

Pressure kit

Pressure kit allows to perform leakage test of the pneumatic / gas installations.
Requires differential pressure sensor to operate.

Ordering code:
Z02-LEAK-TEST-KIT

Li-ion rechargeable battery

Li-ion

Rechargeable Li-ion battery, 3.6V, 1600mAh (or better)

Ordering code:
Z14-BAT-CHARGER_02

In-line filter

In-line filter

In-line filter for all the types of GA-12 probes and GA-12plus probe holders.
Delivered WITHOUT filter insert.

Ordering code:
Z14-FILTER-INLINE

In-line filter insert 12mm/5µm and 12mm/20µm

In-line filter insert

Filter insert for all the types of in-line filters.

Ordering code:
V-FELM082 for 5µm insert
V-FELM252 for 20µm insert
